2544 PLRF

PRODUCTS & SERVICES > STEEL > FLANGES > DIN Standard > PN25 > 2544 PLRF

material-composition

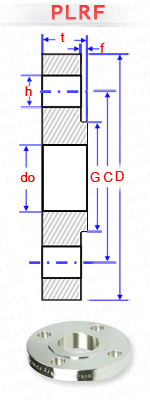

DIMENSION OF PIPE DIMENSION OF FLANGES APPROX. WEIGHT (KG)
NOMINAL PIPE SIZE OD DIA. OF BORE (MM) OUTSIDE DIA. (MM) THICKNESS MIN. (MM) DIA. OF BOLT CIRCLE (MM) NUMBER OF BOLT DIA. OF BOLT HOLE (MM) DIA. OF RAISED FACE (MM) THICKNESS OF RAISED FACE (MM)
ISO SERIES1 ISO SERIES1
DIN SERIES1 DIN SERIES1
      D t C   h G ftd>




10 17.2 17.7 90 16 60 4 14 40 2 0.62
14 14.5
15 21.3 22 95 16 65 4 14 45 2 0.69
20 21
20 26.9 27.6 105 18 75 4 14 58 2 0.97
25 26
25 33.7 34.4 115 18 85 4 14 68 2 1.16
30 31
32 42.4 43.1 140 18 100 4 18 78 2 1.68
38 39
40 48.3 49 150 18 110 4 18 88 3 1.84
44.5 45.5
50 60.3 61.1 165 20 125 4 18 102 3 2.45
57 58.1
65 76.1 77.1 185 22 145 8 18 122 3 3.35
- -
80 88.9 90.3 200 24 160 8 18 138 3 4.20
- -
100 114.3 115.9 235 24 190 8 22 162 3 5.07
108 109.6
125 139.7 141.6 270 26 220 8 26 188 3 6.91
133 134.8
150 168.3 170.5 300 28 250 8 26 218 3 8.80
159 161.1
200 219.1 221.8 360 30 310 12 26 278 3 12.40
- -
250 273 276.2 425 32 370 12 30 335 3 17.19
267 270.2
300 323.9 327.6 485 34 430 16 30 395 4 21.80
- -
350 355.6 359.7 555 38 490 16 33 450 4 35.17
368 372.2
400 406.4 411 620 40 550 16 36 505 4 44.84
419 423.7
450 457 462.5 670 42 600 20 36 550 4 50.54
- -
500 508 513.6 730 44 660 20 36 615 4 63.65
