2543 PLRF

PRODUCTS & SERVICES > STEEL > FLANGES > DIN Standard > PN16 > 2543 PLRF

material-composition
DIMENSION OF PIPE DIMENSION OF FLANGES APPROX. WEIGHT (KG)
NOMINAL PIPE SIZE OD DIA. OF BORE (MM) OUTSIDE DIA. (MM) THICKNESS MIN. (MM) DIA. OF BOLT CIRCLE (MM) NUMBER OF BOLT DIA. OF BOLT HOLE (MM) DIA. OF RAISED FACE (MM) THICKNESS OF RAISED FACE (MM)
ISO SERIES1 ISO SERIES1
DIN SERIES1 DIN SERIES1

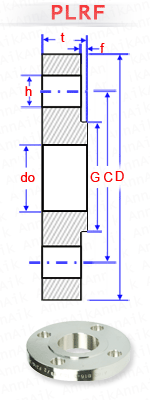

      D t C   h G f
10 17.2 17.7 90 14 60 4 14 40 2 0.53
14 14.5
15 21.3 22 95 14 65 4 14 45 2 0.58
20 21
20 26.9 27.6 105 16 75 4 14 58 2 0.85
25 26
25 33.7 34.4 115 16 85 4 14 68 2 1.01
30 31
32 42.4 43.1 140 16 100 4 18 78 2 1.46
38 39
40 48.3 49 150 16 110 4 18 88 3 1.59
44.5 45.5
50 60.3 61.1 165 18 125 4 18 102 3 2.16
57 58.1
65 76.1 77.1 185 18 145 4 18 122 3 2.65
- -
80 88.9 90.3 200 20 160 8 18 138 3 3.41
- -
100 114.3 115.9 220 20 180 8 18 158 3 3.60
108 109.6
125 139.7 141.6 250 22 210 8 18 188 3 4.96
133 134.8
150 168.3 170.5 285 22 240 8 22 212 3 5.90
159 161.1
200 219.1 221.8 340 24 295 12 22 268 3 8.50
- -
250 273 276.2 405 24 355 12 26 320 3 11.64
267 270.2
300 323.9 327.6 460 28 410 12 26 378 4 14.90
- -
350 355.6 359.7 520 30 470 16 26 438 4 22.15
368 372.2
400 406.4 411 580 32 525 16 30 490 4 27.87
419 423.7
450 457 462.5 640 34 585 20 30 550 4 34.65
- -
500 508 513.6 715 36 650 20 33 610 4 46.66
