2543 PLFF

PRODUCTS & SERVICES > STEEL > FLANGES > DIN Standard > PN16 > 2543 PLFF

material-composition
DIMENSION OF PIPE DIMENSION OF FLANGES APPROX. WEIGHT (KG.)
NOMINAL PIPE SIZE OD DIA. OF BORE (MM) OUTSIDE DIA. (MM) THICKNESS MIN. (MM) DIA. OF BOLT CIRCLE (MM) NUMBER OF BOLT DIA. OF BOLT HOLE (MM)
ISO SERIES1 ISO SERIES1
DIN SERIES1 DIN SERIES1

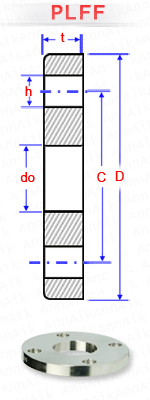

      D t C   h
10 17.2 17.7 90 14 60 4 14 0.605
14 14.5
15 21.3 22 95 14 65 4 14 0.669
20 21
20 26.9 27.6 105 16 75 4 14 0.936
25 26
25 33.7 34.4 115 16 85 4 14 1.11
30 31
32 42.4 43.1 140 16 100 4 18 1.62
38 39
40 48.3 49 150 16 110 4 18 1.86
44.5 45.5
50 60.3 61.1 165 18 125 4 18 2.47
57 58.1
65 76.1 77.1 185 18 145 4 18 3.00
- -
80 88.9 90.3 200 20 160 8 18 3.79
- -
100 114.3 115.9 220 20 180 8 18 4.03
108 109.6
125 139.7 141.6 250 22 210 8 18 5.46
133 134.8
150 168.3 170.5 285 22 240 8 22 6.57
159 161.1
200 219.1 221.8 340 24 295 12 22 9.31
- -
250 273 276.2 405 26 355 12 26 12.77
267 270.2
300 323.9 327.6 460 28 410 12 26 16.59
- -
350 355.6 359.7 520 30 470 16 26 24.08
368 372.2
400 406.4 411 580 32 525 16 30 30.24
419 423.7
450 457 462.3 640 34 585 20 30 37.29
- -
500 508 513.6 715 36 650 20 33 50.09
