NOMINAL PIPE SIZE	OUTSIDE DIA. (MM)	THICKNESS MIN. (MM)	DIA. OF BOLT CIRCLE (MM)	NUMBER OF BOLT	DIA. OF BOLT HOLE (MM)	APPROX. WEIGHT (KG)

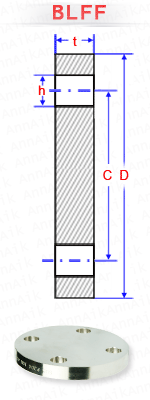

	D	t	C		h
10	90	16	60	4	14	0.72
15	95	16	65	4	14	0.81
20	105	18	75	4	14	1.24
25	115	18	85	4	14	1.38
32	140	18	100	4	18	2.03
40	150	18	110	4	18	2.35
50	165	20	125	4	18	3.20
65	185	22	145	8	18	4.29
80	200	24	160	8	18	5.88
100	235	24	190	8	22	7.54
125	270	26	220	8	26	10.8
150	300	28	250	8	26	14.5
175	330	28	280	12	26	17.3
200	360	30	310	12	26	22.3
250	425	32	370	12	30	33.5
300	485	34	430	16	30	46.3
350	555	38	490	16	33	68.0
400	620	40	550	16	36	89.7
500	730	45	660	20	36	139.0
