Annaik Limited

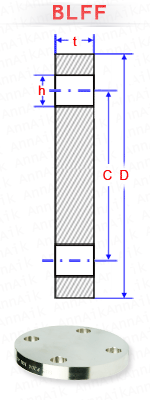

NOMINAL PIPE SIZE	OUTSIDE DIA. (MM)	THICKNESS MIN. (MM)	DIA. OF BOLT CIRCLE (MM)	NUMBER OF BOLT	DIA. OF BOLT HOLE (MM)	APPROX. WEIGHT (KG)
	D	t	C		h
10	90	14	60	4	14	0.63
15	95	14	65	4	14	0.72
20	105	16	75	4	14	1.01
25	115	16	85	4	14	1.23
32	140	16	100	4	18	1.80
40	150	16	110	4	18	2.09
50	165	18	125	4	18	2.88
65	185	18	145	4	18	3.66
80	200	20	160	8	18	4.77
100	220	20	180	8	18	5.65
125	250	22	210	8	18	8.42
150	285	22	240	8	22	10.4
175	315	24	270	8	22	14.0
200	340	24	295	12	22	16.1
250	405	26	355	12	26	24.9
300	460	28	410	12	26	35.1
350	520	30	470	16	26	47.8
400	580	32	525	16	30	63.5
500	715	36	650	20	33	102
