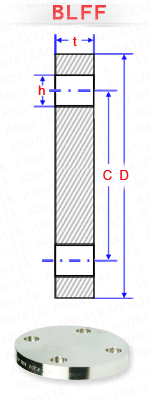

NOMINAL PIPE SIZE	OUTSIDE DIA. (MM)	THICKNESS MIN. (MM)	DIA. OF BOLT CIRCLE (MM)	NUMBER OF BOLT	DIA. OF BOLT HOLE (MM)	APPROX. WEIGHT (KG)
	D	t	C		h
10	75	12	50	4	11	0.38
15	80	12	55	4	11	0.44
20	90	14	65	4	11	0.65
25	100	14	75	4	11	0.82
32	120	14	90	4	14	1.17
40	130	14	100	4	14	1.39
50	140	14	110	4	14	1.62
65	160	14	130	4	14	2.48
80	190	16	150	4	18	3.49
100	210	16	170	4	18	4.86
125	240	18	200	8	18	6.28
150	265	18	225	8	18	7.75
175	295	20	255	8	18	10.7
200	320	20	280	8	18	12.7
250	375	22	335	12	18	19
300	440	22	395	12	22	26.3
350	490	22	445	12	22	32.9
400	540	22	495	16	22	10.2
500	645	24	600	20	22	63.2
