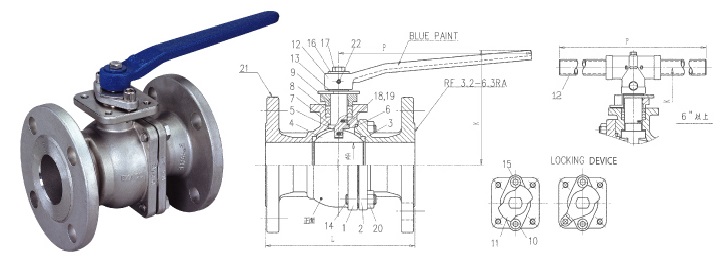

2-PC Flange & Ball Valve, Full Bore, ANSI # 150
| FEATURE |
|---|
| Rating : ANSI # 150 |
| Size : 1/2″~8″(DN15~DN200) |
| Full Bore Flange End |
| ISO 5211 Mounting Pad |
| Anti-Static Device |
| Blow-Out-Proof Stem |
| *Fire Safe design to API 607 4th Edition Special Alloy is also available upon request |
| ITEM | PARTS NAME | MATERIAL | |
|---|---|---|---|
| STAINLESS STEEL | CARBON STEEL | ||
| 1 | Body | A351-CF8M | A216-WCB |
| 2 | Cap | A351-CF8M | A216-WCB |
| 3 | Seat | PTFE+15%G.F. | PTFE+15%G.F. |
| 4 | Ball | A351-CF8M / SUS 316 | A351-CF8 / SUS 304 |
| 5 | Stem | SUS 316 | SUS 304 |
| *6 | Join Gasket | PTFE / *GRAPHITE | PTFE / *GRAPHITE |
| 7 | Gasket | PTFE | PTFE |
| *8 | Seal | PTFE / *GRAPHITE | PTFE / *GRAPHITE |
| 9 | Gland Bush | PTFE | PTFE |
| 10 | Gland Flange | A351-CF8 | A351-CF8 |
| 11 | Stopper | SUS 304 | SUS 304 |
| 12 | Handle / Pipe | DUCTILE IRON / STEEL+Zn plated | DUCTILE IRON / STEEL+Zn plated |
| 13 | Snap Ring | STEEL | STEEL |
| 14A | Bolt | A193-B8 | A193-B8 |
| 14B | Stud (for 5″~8″) | A193-B8M | A193-B8M |
| 15 | Gland Bolt | SUS 304 | SUS 304 |
| 16 | Flat Washer | STFEL | STFEL |
| 17 | Bolt | STFEL | STFEL |
| 18 | Static Device | SUS 304 | SUS 304 |
| 19 | Spring | SUS 304 | SUS 304 |
| 20 | Nut (for 5″~8″) | A194-8M | A194-2H |
| 21 | Tag | SUS 304 | SUS 304 |
| 22 | Socket Screw | STEEL | STEEL |
| DIMENSION | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| ITEM | A | E | L | P | K | ||||||
| Size | NPS | mm | inch | mm | inch | mm | inch | mm | inch | mm | inch |
| 1/2″ | DN15 | 16 | 0.630 | 48.35 | 1.904 | 108 | 4.252 | 135 | 5.315 | 78.8 | 3.102 |
| 3/4″ | DN20 | 20 | 0.787 | 55.45 | 2.183 | 117 | 4.606 | 135 | 5.315 | 83.3 | 3.280 |
| 1″ | DN25 | 25 | 0.984 | 66.10 | 2.602 | 127 | 5.000 | 160 | 6.299 | 95.1 | 3.744 |
| 1-1/2″ | DN40 | 38 | 1.496 | 81.30 | 3.201 | 165 | 6.496 | 230 | 9.055 | 121.6 | 4.787 |
| 2″ | DN50 | 50 | 1.969 | 82.90 | 3.264 | 178 | 7.008 | 230 | 9.055 | 129.9 | 5.114 |
| 2-1/2″ | DN65 | 65 | 2.559 | 93.10 | 3.665 | 190 | 7.480 | 230 | 9.055 | 140.7 | 5.539 |
| 3″ | DN80 | 80 | 3.150 | 85.30 | 3.358 | 203 | 7.992 | 350 | 13.780 | 148.8 | 5.858 |
| 4″ | DN100 | 100 | 3.937 | 98.40 | 3.874 | 229 | 9.016 | 400 | 15.748 | 175.6 | 6.913 |
| 5″ | DN125 | 127 | 5.000 | 178.00 | 7.008 | 356 | 14.016 | 400 | 15.748 | 206.2 | 8.118 |
| 6″ | DN150 | 152 | 5.984 | 197.00 | 7.756 | 394 | 15.512 | 800 | 31.496 | 268.5 | 10.571 |
| 8″ | DN200 | 203 | 7.992 | 228.50 | 8.996 | 457 | 17.992 | 1100 | 43.307 | 340.0 | 13.386 |
