2-PC Ball Valve, Full Bore, 1000 PSI
| FEATURE | |
|---|---|
| Working Pressure | 1000 PSI |
| Size | 1/4″~2″(DN8~DN50) |
| Full Bore | |
| Thread End | NPT, BSPT, BSPF, DIN 2999 |
| Blow-Out-Proof Stem | |
| Optional | Locking Handle |

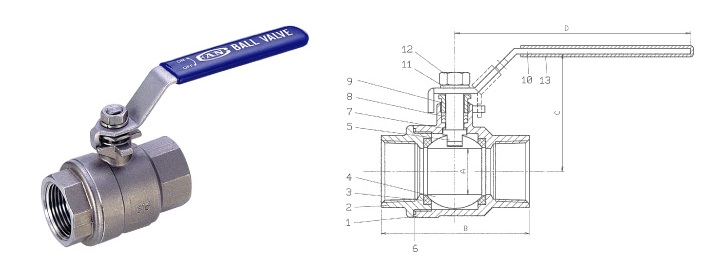

| ITEM | PARTS NAME | MATERIAL | |
|---|---|---|---|
| STAINLESS STEEL | CARBON STEEL | ||
| 1 | Body | A351-CF8M | A216-WCB |
| 2 | End Cap | A351-CF8M | A216-WCB |
| 3 | Seat | PTFE+15%G.F. | PTFE+15%G.F. |
| 4 | Ball | A351-CF8M / SUS 316 | A351-CF8 / SUS 304 |
| 5 | Stem | SUS 316 | SUS 304 |
| 6 | Join Gasket | PTFE | PTFE |
| 7 | Gasket | PTFE | PTFE |
| 8 | Seal | PTFE | PTFE |
| 9 | Packing Gland | SUS 304 | SUS 304 |
| 10 | Handle | SUS 304 | SUS 304 |
| 11 | Lever Spring Washer | SUS 304 | SUS 304 |
| 12 | Lever Nut | SUS 304 | SUS 304 |
| 13 | Plastic Coating | VINYL | VINYL |
| DIMENSION | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| ITEM | A | B | C | D | |||||
| Size | NPS | mm | inch | mm | inch | mm | inch | mm | inch |
| 1/4″ | DN8 | 10.0 | 0.394 | 49.2 | 1.937 | 41.4 | 1.630 | 80 | 3.150 |
| 3/8″ | DN10 | 12.5 | 0.492 | 49.2 | 1.937 | 41.4 | 1.630 | 80 | 3.150 |
| 1/2″ | DN15 | 15.0 | 0.591 | 59.0 | 2.323 | 45.0 | 1.772 | 80 | 3.150 |
| 3/4″ | DN20 | 20.0 | 0.787 | 68.6 | 2.701 | 54.7 | 2.154 | 100 | 3.937 |
| 1″ | DN25 | 24.5 | 0.965 | 78.6 | 3.094 | 65.3 | 2.571 | 125 | 4.921 |
| 1-1/4″ | DN32 | 32.0 | 1.260 | 93.2 | 3.669 | 70.9 | 2.791 | 125 | 4.921 |
| 1-1/2″ | DN40 | 38.0 | 1.496 | 103.1 | 4.059 | 84.0 | 3.307 | 160 | 6.299 |
| 2″ | DN50 | 50.0 | 1.969 | 123.3 | 4.854 | 93.3 | 3.673 | 160 | 6.299 |
