NOMINAL PIPE SIZE		OUTSIDE DIA.(MM)	DIA. OF BOLT CIRCLE (MM)	DIA. OF HOLES (MM)	NUMBER OF HOLES	DIA. OF BORE (MM)	THICKNESS MIN. (MM)	DIA. OF HUB AT SMALL END (MM)	DIA. OF HUB AT LARGE END (MM)	LENGTH THRU. HUB (MM)	CHAMFERING (MM)	RADIUS OF FILLET(MM)	APPROX. WEIGHT (KG.)

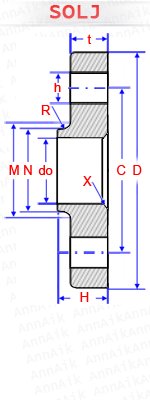

A		D	C	h		do	t	N	M	H	X	R
3/8"	10	90	65	15	4	-	12	26	28	16	-	4	-
1/2"	15	95	70	15	4	23.4	12	30	32	16	3	4	0.57
3/4"	20	100	75	15	4	28.9	14	38	42	20	3	4	0.74
1"	25	125	90	19	4	35.6	14	46	50	20	3	4	1.15
1.1/4"	32	135	100	19	4	44.3	16	56	60	22	4	5	1.50
1.1/2"	40	140	105	19	4	50.4	16	62	66	24	4	5	1.61
2"	50	155	120	19	8	62.7	16	76	80	24	4	5	1.79
2.1/2"	65	175	140	19	8	78.7	18	94	98	26	5	5	2.51
3"	80	200	160	23	8	91.6	20	108	112	28	5	6	3.53
3.1/2"	90	210	170	23	8	104.1	20	120	124	30	5	6	3.80
4"	100	225	185	23	8	116.9	22	134	138	34	5	6	4.76
5"	125	270	225	25	8	143.0	22	164	170	34	6	6	6.92
6"	150	305	260	25	12	168.4	24	196	202	38	6	6	9.35
7"	200	350	305	25	12	219.5	26	244	252	40	6	6	11.8
8"	250	430	380	27	12	271.7	28	304	312	44	6	6	19.6
9"	300	480	430	27	16	322.8	30	354	364	48	9	8	23.6
10"	350	540	480	33	16	360.2	34	398	408	52	9	8	33.5
12"	400	605	540	33	16	411.2	38	446	456	60	9	10	46.3
14′	450	675	605	33	20	462.3	40	504	514	64	9	10	60.5
16"	500	730	660	33	20	514.4	42	558	568	68	9	10	71.7
18"	550	795	720	39	20	565.2	44	612	622	70	9	10	85.8
20"	600	845	770	39	24	616.0	46	666	676	74	9	10	96.1
