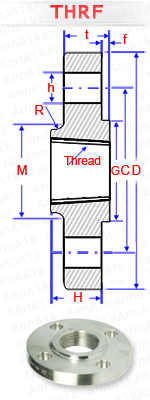

113 THRF
| NOMINAL PIPE SIZE | OUTSIDE DIA. (MM) | DIA. OF BOLT CIRCLE (MM) | DIA. OF BOLT HOLE (MM) | NUMBER OF HOLES | THICKNESS MIN. (MM) | DIA. AT BASE OF HUB (MM) | LENGTH THRU HUB (MM) | RADIUS OF FILLET (MM) | DIA. OF RAISED FACE (MM) | HEIGHT OF RAISED FACE (MM) | APPROX. WEIGHT (KG) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| D | C | h | C | M | G | R | f | H | |||
| 10 | 90 | 60 | 14 | 4 | 14 | 30 | 20 | 3 | 30 | 3 | |
| 15 | 95 | 65 | 14 | 4 | 14 | 35 | 20 | 3 | 35 | 3 | |
| 20 | 105 | 75 | 14 | 4 | 16 | 45 | 24 | 4 | 45 | 4 | |
| 25 | 115 | 85 | 14 | 4 | 16 | 52 | 24 | 4 | 52 | 4 | |
| 32 | 140 | 100 | 18 | 4 | 16 | 60 | 26 | 5 | 60 | 5 | |
| 40 | 150 | 110 | 18 | 4 | 16 | 70 | 26 | 5 | 70 | 5 | |
| 50 | 165 | 125 | 18 | 4 | 18 | 84 | 28 | 5 | 84 | 5 | |
| 65 | 185 | 145 | 18 | 4 | 18 | 104 | 32 | 6 | 104 | 6 | |
| 80 | 200 | 160 | 18 | 8 | 20 | 118 | 34 | 6 | 118 | 6 | |
| 100 | 220 | 180 | 18 | 8 | 20 | 140 | 40 | 6 | 140 | 5 | |
| 125 | 250 | 210 | 18 | 8 | 22 | 168 | 44 | 6 | 168 | 5 | |
| 150 | 285 | 240 | 22 | 8 | 22 | 195 | 44 | 8 | 195 | 8 | |
| 200 | 340 | 295 | 22 | 12 | 24 | 246 | 44 | 8 | 246 | 8 | |
| 250 | 405 | 355 | 26 | 12 | 26 | 298 | 46 | 10 | 298 | 10 | |
| 300 | 460 | 410 | 26 | 12 | 28 | 350 | 46 | 10 | 350 | 10 |
