113 THRF

PRODUCTS & SERVICES > STEEL > FLANGES > BS Standard > BS 4504 / PN6 > 113 THRF

material-composition

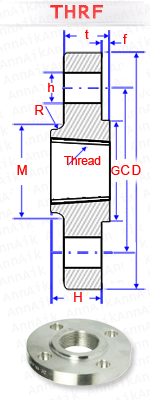

NOMINAL PIPE SIZE OUTSIDE DIA. (MM) DIA. OF BOLT CIRCLE (MM) DIA. OF BOLT HOLE (MM) NUMBER OF HOLES THICKNESS MIN. (MM) DIA. AT BASE OF HUB (MM) RADIUS OF FILLET (MM) LENGTH THRU HUB (MM) DIA. OF RAISED FACE (MM) HEIGHT OF RAISED FACE (MM) APPROX. WEIGHT (KG)
  D C h   C M R G f H
10 75 50 11 4 12 25 3 20 35 2
15 80 55 11 4 12 30 3 20 40 2
20 90 65 11 4 14 40 4 24 50 2
25 100 75 11 4 14 50 4 24 60 2
32 120 90 14 4 14 60 5 26 70 2
40 130 100 14 4 14 70 5 26 80 2
50 140 110 14 4 14 80 5 28 90 3
65 160 130 14 4 14 100 6 32 110 3
80 190 150 18 4 16 110 6 34 128 3
100 210 170 18 4 16 130 6 40 148 3
125 240 200 18 8 18 160 6 44 178 3
150 265 225 18 8 18 185 8 44 202 3
200 320 280 18 8 20 240 8 44 258 3
250 375 335 18 12 22 295 10 44 312 3
300 440 395 22 12 22 355 10 44 365 3
