113 THFF

PRODUCTS & SERVICES > STEEL > FLANGES > BS Standard > BS 4504 / PN40 > 113 THFF

material-composition

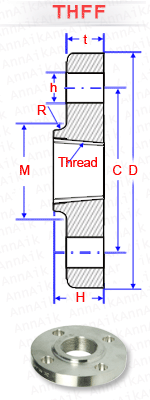

NOMINAL PIPE SIZE OUTSIDE DIA.(MM) DIA. OF BOLT CIRCLE (MM) DIA. OF  BOLT HOLE (MM) NUMBER OF HOLES THICKNESS MIN. (MM) DIA. AT BASE OF HUB (MM) LENGTH THRU HUB (MM) RADIUS OF FILLET (MM) DIA. OF RAISED FACE (MM) HEIGHT OF RAISED FACE (MM) APPROX. WEIGHT (KG)
  D C h   C M G R f H
10 90 60 14 4 16 30 22 3 40 2
 15 95 65 14 4 16 35 22 3 45 2
 20 105 75 14 4 18 45 26 4 58 2
 25 115 85 14 4 18 52 28 4 68 2
 32 140 100 18 4 18 60 30 5 78 3
 40 150 110 18 4 18 70 32 5 88 3
 50 165 125 18 4 20 84 34 5 102 3
 65 185 145 18 8 22 104 38 6 122 3
 80 200 160 18 8 24 118 40 6 138 3
 100 235 190 22 8 24 145 44 6 162 3
 125 270 220 26 8 26 170 48 6 188 3
 150 300 250 26 8 28 200 52 8 218 3
 200 375 320 30 12 34 260 52 10 285 3
 250 450 385 33 12 38 312 60 10 345 4
 300 515 450 33 16 42 380 67 10 410 4
