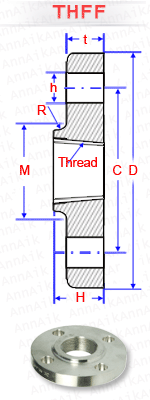

113 THFF
| NOMINAL PIPE SIZE | OUTSIDE DIA.(MM) | DIA. OF BOLT CIRCLE (MM) | DIA. OF BOLT HOLE (MM) | NUMBER OF HOSLES | THICKNESS MIN. (MM) | DIA. AT BASE OF HUB (MM) | RADIUS OF FILLET (MM) | LENGTH THRU HUB (MM) | APPROX. WEIGHT (KG) |
|---|---|---|---|---|---|---|---|---|---|
| D | C | h | C | M | R | G | |||
| 10 | 75 | 50 | 11 | 4 | 12 | 25 | 3 | 20 | |
| 15 | 80 | 55 | 11 | 4 | 12 | 30 | 3 | 20 | |
| 20 | 90 | 65 | 11 | 4 | 14 | 40 | 4 | 24 | |
| 25 | 100 | 75 | 11 | 4 | 14 | 50 | 4 | 24 | |
| 32 | 120 | 90 | 14 | 4 | 14 | 60 | 5 | 26 | |
| 40 | 130 | 100 | 14 | 4 | 14 | 70 | 5 | 26 | |
| 50 | 140 | 110 | 14 | 4 | 14 | 80 | 5 | 28 | |
| 65 | 160 | 130 | 14 | 4 | 14 | 100 | 6 | 32 | |
| 80 | 190 | 150 | 18 | 4 | 16 | 110 | 6 | 34 | |
| 100 | 210 | 170 | 18 | 4 | 16 | 130 | 6 | 40 | |
| 125 | 240 | 200 | 18 | 8 | 18 | 160 | 6 | 44 | |
| 150 | 265 | 225 | 18 | 8 | 18 | 185 | 8 | 44 | |
| 200 | 320 | 280 | 18 | 8 | 20 | 240 | 8 | 44 | |
| 250 | 375 | 335 | 18 | 12 | 22 | 295 | 10 | 44 | |
| 300 | 440 | 395 | 22 | 12 | 22 | 355 | 10 | 44 |
