112 SORF

PRODUCTS & SERVICES > STEEL > FLANGES > BS Standard > BS 4504 / PN25 > 112 SORF

material-composition
NOMINAL PIPE SIZE OUTSIDE DIA.(MM) DIA. OF BOLT CIRCLE (MM) DIA. OF BOLT HOLE (MM) NUMBER OF HOLES DIA. OF BORE (MM) THICKNESS MIN. (MM) LENGTHS THRU HUB(MM) DIA. OF HUB (MM) DIA. OF RAISED FACE (MM) HEIGHT OF RAISED FACE (MM) RADIUS OF FILLET (MM) APPROX. WEIGHT (KG)

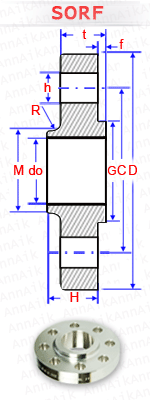

  D C h   do t H M G f R
10 90 60 14 4 18 16 22 30 30 40 3
15 95 65 14 4 22 16 22 35 35 45 3
20 105 75 14 4 27 18 26 45 45 58 4
25 115 85 14 4 34.5 18 28 52 52 68 4
32 140 100 18 4 43.5 18 30 60 60 78 5
40 150 110 18 4 49.5 18 32 70 70 88 5
50 165 125 18 4 61.5 20 34 84 84 102 5
65 185 145 18 8 77.5 22 38 104 104 122 6
80 200 160 18 8 90.5 24 40 118 118 138 6
100 235 190 22 8 116.0 24 44 145 145 162 5
125 270 220 26 8 141.5 26 48 170 170 188 5
150 300 250 26 8 170.5 28 52 200 200 218 8
200 360 310 26 12 221.5 30 52 256 256 278 8
250 425 370 30 12 276.5 32 60 310 310 335 10
300 485 430 30 16 327.5 34 67 364 364 395 10
350 555 490 33 16 359.5 38 72 418 418 450 10
400 620 550 36 16 411.0 40 78 472 472 505 10
450 670 600 36 20 462.0 42 84 520 520 555 12
500 730 660 36 20 513.5 44 90 580 580 615 12
600 845 770 39 20 616.5 46 100 684 684 720 12
700 960 875 42 24 - 46 - - - 820 12
800 1085 990 48 24 - 50 - - - 930 12
900 1185 1090 48 28 - 54 - - - 1030 12
1000 1320 1210 56 28 - 58 - - - 1140 12
1200 1530 1420 56 32 - - - - - 1350 12
1400 1755 1640 62 36 - - - - - 1560 12
1600 1975 1860 62 40 - - - - - 1780 12
1800 2185 2070 70 44 - - - - - 1985 15
2000 2425 2300 70 48 - - - - - 2210 15
