112 SORF

PRODUCTS & SERVICES > STEEL > FLANGES > BS Standard > BS 4504 / PN16 > 112 SORF

material-composition
NOMINAL PIPE SIZE OUTSIDE DIA.(MM) DIA. OF BOLT CIRCLE (MM) DIA. OF BOLT HOLE (MM) NUMBER OF HOLES DIA. OF BORE (MM) THICKNESS MIN. (MM) LENGTHS THRU HUB (MM) DIA. OF HUB (MM) DIA. OFRAISEDFACE (MM) HEIGHT OF RAISED FACE (MM) RADIUS OF FILLET (MM) APPROX. WEIGHT (KG)

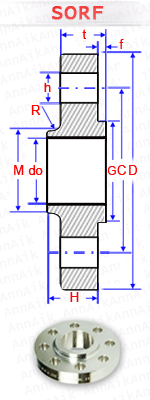

  D C h   do t H M G f R
10 90 60 14 4 18 14 20 30 40 2 3
15 95 65 14 4 22 14 20 35 45 2 3
20 105 75 14 4 27 16 24 45 58 2 4
25 115 85 14 4 34.5 16 24 52 68 2 4
32 140 100 18 4 43.5 16 26 60 78 2 5
40 150 110 18 4 49.5 16 26 70 88 3 5
50 165 125 18 4 61.5 18 28 84 102 3 5
65 185 145 18 4 77.5 18 32 104 122 3 6
80 200 160 18 8 90.5 20 34 118 138 3 6
100 220 180 18 8 116.0 20 40 140 162 3 5
125 250 210 18 8 141.5 22 44 168 188 3 5
150 285 240 22 8 170.5 22 44 195 212 3 8
200 340 295 22 12 22.5 24 44 246 268 3 8
250 405 355 26 12 276.5 26 46 298 320 3 10
300 460 410 26 12 327.5 28 46 350 378 4 10
350 520 470 26 16 359.0 30 57 400 438 4 10
400 580 525 30 16 411.0 32 63 456 490 4 10
450 640 585 30 20 462.0 34 68 502 550 4 12
500 715 650 33 20 513.5 34 73 559 610 4 12
600 840 770 36 20 616.5 36 83 658 725 5 12
700 910 840 36 24   36 83 760 795 5 12
800 1025 950 39 24   38 90 864 900 5 12
900 1125 1050 39 28   40 94 968 1000 5 12
1000 1255 1170 42 28   42 100 1072 1115 5 12
1200 1485 1390 48 32   48 - - 1330 5 12
1400 1685 1590 48 36   52 - - 1530 5 12
1600 1930 1820 56 40   58 - - 1750 5 12
1800 2130 2020 56 44   62 - - 1950 5 15
2000 2345 2230 62 48   66 - - 2150 5 15
