112 SOFF

PRODUCTS & SERVICES > STEEL > FLANGES > BS Standard > BS 4504 / PN25 > 112 SOFF

material-composition
NOMINAL PIPE SIZE OUTSIDE DIA.(MM) DIA. OF BOLT CIRCLE (MM) DIA. OF BOLT HOLE (MM) NUMBER OF HOLES DIA. OF BORE (MM) THICKNESS MIN. (MM) LENGTHS THRU HUB(MM) DIA. OF HUB (MM) DIA. OF RAISED FACE (MM) APPROX. WEIGHT (KG)

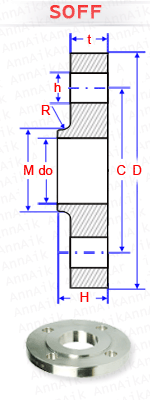

  D C h   do t H M G
10 90 60 14 4 18 16 22 30 30
15 95 65 14 4 22 16 22 35 35
20 105 75 14 4 27 18 26 45 45
25 115 85 14 4 34.5 18 28 52 52
32 140 100 18 4 43.5 18 30 60 60
40 150 110 18 4 49.5 18 32 70 70
50 165 125 18 4 61.5 20 34 84 84
65 185 145 18 8 77.5 22 38 104 104
80 200 160 18 8 90.5 24 40 118 118
100 235 190 22 8 116.0 24 44 145 145
125 270 220 26 8 141.5 26 48 170 170
150 300 250 26 8 170.5 28 52 200 200
200 360 310 26 12 221.5 30 52 256 256
250 425 370 30 12 276.5 32 60 310 310
300 485 430 30 16 327.5 34 67 364 364
350 555 490 33 16 359.5 38 72 418 418
400 620 550 36 16 411.0 40 78 472 472
450 670 600 36 20 462.0 42 84 520 520
500 730 660 36 20 513.5 44 90 580 580
600 845 770 39 20 616.5 46 100 684 684
700 960 875 42 24 - 46 - - -
800 1085 990 48 24 - 50 - - -
900 1185 1090 48 28 - 54 - - -
1000 1320 1210 56 28 - 58 - - -
1200 1530 1420 56 32 - - - - -
1400 1755 1640 62 36 - - - - -
1600 1975 1860 62 40 - - - - -
1800 2185 2070 70 44 - - - - -
2000 2425 2300 70 48 - - - - -
