112 SOFF

PRODUCTS & SERVICES > STEEL > FLANGES > BS Standard > BS 4504 / PN16 > 112 SOFF

material-composition
NOMINAL PIPE SIZE OUTSIDE DIA. (MM) DIA. OF BOLT CIRCLE (MM) DIA. OF BOLT HOLE (MM) NUMBER OF HOLES DIA. OF BORE (MM) THICKNESS MIN. (MM) LENGTHS THRU HUB (MM) DIA. OF HUB (MM) RADIUS OF FILLET (MM) APPROX. WEIGHT (KG)

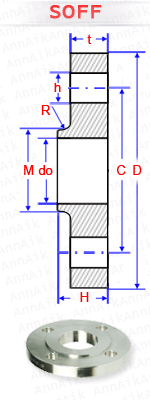

  D C h   do t H M R
10 90 60 14 4 18 14 20 30 3
15 95 65 14 4 22 14 20 35 3
20 105 75 14 4 27 16 24 45 4
25 115 85 14 4 34.5 16 24 52 4
32 140 100 18 4 43.5 16 26 60 5
40 150 110 18 4 49.5 16 26 70 5
50 165 125 18 4 61.5 18 28 84 5
65 185 145 18 4 77.5 18 32 104 6
80 200 160 18 8 90.5 20 34 118 6
100 220 180 18 8 116.0 20 40 140 5
125 250 210 18 8 141.5 22 44 168 5
150 285 240 22 8 170.5 22 44 195 8
200 340 295 22 12 22.5 24 44 246 8
250 405 355 26 12 276.5 26 46 298 10
300 460 410 26 12 327.5 28 46 350 10
350 520 470 26 16 359.0 30 57 400 10
400 580 525 30 16 411.0 32 63 456 10
450 640 585 30 20 462.0 34 68 502 12
500 715 650 33 20 513.5 34 73 559 12
600 840 770 36 20 616.5 36 83 658 12
700 910 840 36 24   36 83 760 12
800 1025 950 39 24   38 90 864 12
900 1125 1050 39 28   40 94 968 12
1000 1255 1170 42 28   42 100 1072 12
1200 1485 1390 48 32   48 - - 12
1400 1685 1590 48 36   52 - - 12
1600 1930 1820 56 40   58 - - 12
1800 2130 2020 56 44   62 - - 15
2000 2345 2230 62 48   66 - - 15
