112 SOFF

PRODUCTS & SERVICES > STEEL > FLANGES > BS Standard > BS 4504 / PN6 > 112 SOFF

material-composition
NOMINAL PIPE SIZE OUTSIDE DIA.(MM) DIA. OF BOLT CIRCLE (MM) DIA. OF BOLT HOLE (MM) NUMBER OF HOLES DIA. OF BORE (MM) THICKNESS MIN. (MM) LENGTHS THRU HUB (MM) DIA. OF HUB (MM) RADIUS OF FILLET (MM)

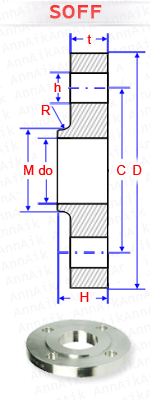

  D C h   do t H M R
10 75 50 11 4 18 12 20 25 3
15 80 55 11 4 22 12 20 30 3
20 90 65 11 4 27.5 14 24 40 4
25 100 75 11 4 34.5 14 24 50 4
32 120 90 14 4 43.5 14 26 60 5
40 130 100 14 4 49.5 14 26 70 5
50 140 110 14 4 61.5 14 28 80 5
65 160 130 14 4 77.5 14 32 100 6
80 190 150 18 4 90.5 16 34 110 6
100 210 170 18 4 116 16 40 130 6
125 240 200 18 8 141.5 18 44 160 6
150 265 225 18 8 170.5 18 44 185 8
200 320 280 18 8 221.5 20 44 240 10
250 375 335 18 12 276.5 22 44 295 10
300 440 395 22 12 327.5 22 44 355 10
350 490 445 22 12 359.5 22 - - 10
400 540 495 22 16 411 22 - - 12
450 595 550 22 16 462 22 - - 12
500 645 600 22 20 513.5 24 - - 12
600 755 705 26 20 616.5 24 - - 12
700 860 810 26 24 777 24 - - 12
800 975 920 30 24 819 24 - - 12
900 1075 1020 30 24 920 26 - - 12
1000 1175 1120 30 28 1022 26 - - 12
1200 1405 1340 33 32 1227 28 - - 12
1400 1630 1560 36 36 1427 32 - - 12
1600 1830 1760 36 40 1628 34 - - 12
1800 2045 1970 39 44 1828 36 - - 15
2000 2265 2180 42 48 - 36 - - 15
2200 2475 2390 42 52 - 42 - - 15
2400 2685 2600 42 56 2928 44 - - 15
2600 2905 2810 48 60 - 46 - - 15
2800 3115 3020 48 64 - 48 - - 15
3000 3315 3220 48 68 3032 50 - - 15
3200 3525 3430 48 72 - 54 - - 15
3400 3735 3640 48 76 - 56 - - 15
3600 3970 3860 56 80 - 60 - - 15
