111 WNRF

PRODUCTS & SERVICES > STEEL > FLANGES > BS Standard > BS 4504 / PN25 > 111 WNRF

material-composition
NOMINAL PIPE SIZE OUTSIDE DIA. (MM) DIA. OF BOLT CIRCLE (MM) DIA. OF BOLT HOLE (MM) NUMBER OF HOLE OUTSIDE DIA. OF NECK (MM) DIA. OF BORE (MM) THICKNESS MIN. (MM) LENGTHS THRU HUB (MM) LENGTH OF NECK (MM) DIA. OF NECK AT BASE (MM) RADIUS OF FILLET (MM) THICKNESS OF NECK (MM) DIA. OF RAISED FACE (MM) HEIGHT OF RAISED FACE (MM) APPROX. WEIGHT (KG)

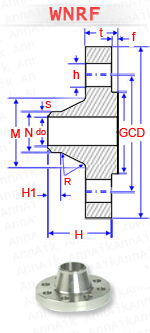

  D C h   A do t H H1 M R S G f
10 90 60 14 4 17.2 18 16 35 6 28 3 1.8 40 2
15 95 65 14 4 21.3 22 16 38 6 32 3 2.0 45 2
20 105 75 14 4 26.9 27 18 40 6 40 4 2.3 58 2
25 115 85 14 4 33.7 34.5 18 40 6 46 4 2.6 68 2
32 140 100 18 4 42.4 43.5 18 42 6 56 5 2.6 78 3
40 150 110 18 4 48.3 49.5 18 45 7 64 5 2.6 88 3
50 165 125 18 4 60.3 61.5 20 48 8 74 5 2.9 102 3
65 185 145 18 8 76.1 77.5 22 52 10 92 5 2.9 122 3
80 200 160 18 8 88.9 90.5 24 58 12 110 6 3.2 138 3
100 235 190 22 8 114.3 116.0 24 65 12 134 6 3.6 162 3
125 270 220 26 8 139.7 141.5 26 68 12 162 6 4.0 188 3
150 300 250 26 8 168.3 170.5 28 75 12 190 6 4.5 218 3
200 360 310 26 12 219.1 221.5 30 80 16 244 8 6.3 278 3
250 425 370 30 12 273.0 276.5 32 88 18 296 10 7.1 335 4
300 485 430 30 16 323.9 327.5 34 92 18 350 10 8.0 395 4
350 555 490 33 16 355.6 359.5 38 100 20 398 10 8.0 450 4
400 620 550 36 16 406.4 411.0 40 110 20 452 10 8.8 505 4
450 670 600 36 20 457 462.0 42 110 20 500 12 8.8 555 4
500 730 660 36 20 508 513.5 44 125 20 558 12 10.0 615 5
600 845 770 39 20 610 616.5 46 125 20 660 12 11.0 720 5
700 960 875 42 24 711 - 46 125 20 760 12 12.5 820 5
800 1085 990 48 24 813 - 50 135 22 864 12 14.2 930 5
900 1185 1090 48 28 914 - 54 145 24 968 12 16.0 1030 5
1000 1320 1210 56 28 1016 - 58 155 24 1070 12 17.5 1140 5
1200 1530 1420 56 32 1220 - - - - - 12 - 1350 5
1400 1755 1640 62 36 1420 - - - - - 12 - 1560 5
1600 1975 1860 62 40 1620 - - - - - 12 - 1780 5
1800 2185 2070 70 44 1820 - - - - - 15 - 1985 5
2000 2425 2300 70 48 2020 - - - - - 15 - 2210 5
