111 WNFF

PRODUCTS & SERVICES > STEEL > FLANGES > BS Standard > BS 4504 / PN16 > 111 WNFF

material-composition

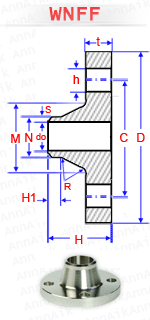

PIPE SIZE OUTSIDE DIA. (MM) DIA. OF BOLT CIRCLE (MM) DIA. OF BOLT HOLE (MM) NUMBER OF HOLE OUTSIDE DIA. OF NECK (MM) DIA. OF BORE (MM) THICKNESS MIN. (MM) LENGTHS THRU HUB (MM) LENGTH OF NECK (MM) DIA. OF NECK AT BASE (MM) RADIUS OF FILLET (MM) THICKNESS OF NECK (MM) DIA. OF RAISED FACE (MM) HEIGHT OF RAISED FACE (MM) APPROX. WEIGHT (KG)
  D C h   A do t H H1 M R S G f
10 90 60 14 4 17.2   14 35 6 28 3 1.8 40 2
15 95 65 14 4 21.3   14 35 6 32 3 2.0 45 2
20 105 75 14 4 26.9   16 38 6 39 4 2.3 58 2
25 115 85 14 4 33.7   16 38 6 46 4 2.6 68 2
32 140 100 18 4 42.4   16 40 6 56 5 2.6 78 2
40 150 110 18 4 48.3   16 42 7 64 5 2.6 88 3
50 165 125 18 4 60.3   18 45 8 74 5 2.9 102 3
65 185 145 18 4 76.1   18 45 10 92 6 2.9 122 3
80 200 160 18 8 88.9   20 50 10 110 6 3.2 138 3
100 220 180 18 8 114.3   20 52 12 130 6 3.6 162 3
125 250 210 18 8 139.7   22 55 12 158 6 4.0 188 3
150 285 240 22 8 168.3   22 55 12 184 8 4.5 212 3
200 340 295 22 12 219.1   24 62 16 234 8 5.6 268 3
250 405 355 26 12 273.0   26 70 16 288 10 6.3 320 3
300 460 410 26 12 323.9   28 78 16 342 10 7.1 370 4
350 520 470 26 16 355.6   30 82 16 390 10 8.0 430 4
400 580 525 30 16 406.4   32 85 16 444 10 8.0 482 4
450 640 585 30 20 457   34 87 16 490 12 8.0 532 4
500 715 650 33 20 508   34 90 16 546 12 8.0 585 4
600 840 770 36 20 610   36 95 18 650 12 8.8 685 5
700 910 840 36 24 711   36 100 18 750 12 8.8 800 5
800 1025 950 39 24 813   38 105 20 848 12 10.0 905 5
900 1125 1050 39 28 914   40 110 20 948 12 10.0 1005 5
1000 1255 1170 42 28 1016   42 120 22 1056 12 10.0 1110 5
1200 1485 1390 48 32 1220   48 130 30 1260 12 12.5 1330 5
1400 1685 1590 48 36 1420   52 145 30 1465 12 14.2 1535 5
1600 1930 1820 56 40 1620   58 160 35 1668 12 16.0 1760 5
1800 2130 2020 56 44 1820   62 170 35 1870 15 17.5 1960 5
2000 2345 2230 62 48 2020   66 190 40 2072 15 20.0 2170 5
