111 WNFF

PRODUCTS & SERVICES > STEEL > FLANGES > BS Standard > BS 4504 / PN10 > 111 WNFF

material-composition
NOMINAL PIPE SIZE OUTSIDE DIA. (MM) DIA. OF BOLT CIRCLE (MM) DIA. OF BOLT HOLE (MM) NUMBER OF HOLE OUTSIDE DIA. OF NECK (MM) DIA. OF BORE (MM) THICKNESS MIN. (MM) LENGTHS THRU HUB (MM) LENGTH OF NECK (MM) DIA. OF NECK AT BASE (MM) RADIUS OF FILLET (MM) THICKNESS OF NECK (MM) APPROX. WEIGHT (KG)

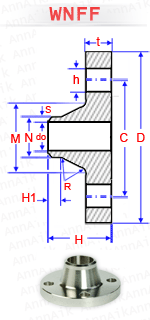

  D C h   A do t H H1 M R S
10 90 60 14 4 17.2   14 35 6 28 3 1.8
15 95 65 14 4 21.3   14 35 6 32 3 2.0
20 105 75 14 4 26.9   16 38 6 39 4 2.3
25 115 85 14 4 33.7   16 38 6 46 4 2.6
32 140 100 18 4 42.4   16 40 6 56 5 2.6
40 150 110 18 4 48.3   16 42 7 64 5 2.6
50 165 125 18 4 60.3   18 45 8 74 5 2.9
65 185 145 18 4 76.1   18 45 10 92 6 2.9
80 200 160 18 8 88.9   20 50 10 110 6 3.2
100 220 180 18 8 114.3   20 52 12 130 6 3.6
125 250 210 18 8 139.7   22 55 12 158 6 4.0
150 285 240 22 8 168.3   22 55 12 184 8 4.5
200 340 295 22 8 219.1   24 62 16 234 8 5.6
250 395 350 22 12 273.0   26 68 16 288 10 6.3
300 445 400 22 12 323.9   26 68 16 342 10 7.1
350 505 460 22 16 355.6   26 68 16 390 10 7.1
400 565 515 26 16 406.4   26 72 16 440 10 7.1
450 615 565 26 20 457   28 72 16 488 12 7.1
500 670 620 26 20 508   28 75 16 540 12 7.1
600 780 725 30 20 610   28 80 18 640 12 7.1
700 895 840 30 24 711   30 80 18 746 12 8.0
800 1015 950 33 24 813   32 90 18 848 12 8.0
900 1115 1050 33 28 914   34 95 20 948 12 10.0
1000 1230 1160 36 28 1016   34 95 20 1050 12 10.0
1200 1455 1380 39 32 1220   38 115 25 1256 12 11.0
1400 1675 1590 42 36 1420   42 120 25 1460 12 12.0
1600 1915 1820 48 40 1620   46 130 25 1666 12 14.0
1800 2115 2020 48 44 1820   50 140 30 1866 15 15.0
2000 2325 2230 48 48 2020   54 150 30 2070 15 16.0
2200 2550 2440 56 52 2222   58 160 35 2275 18
2400 2760 2650 56 56 2420   62 170 35 2478 18
2600 2960 2850 56 60 2620   66 180 40 2680 18
2800 3180 3070 56 64 2820   70 190 40 2882 18
3000 3405 3290 62 68 3020   75 200 45 3085 18
