101 PLRF

PRODUCTS & SERVICES > STEEL > FLANGES > BS Standard > BS 4504 / PN40 > 101 PLRF

material-composition
NOMINAL PIPE SIZE OUTSIDE DIA.(MM) DIA. OF BOLT CIRCLE (MM) DIA. OF HOLE (MM) NUMBER OF HOLES DIA. OF BORE (MM) THICKNESS MIN. (MM) DIA. OF RAISED FACE (MM) HEIGHT OF RAISED FACE (MM) APPROX. WEIGHT (KG)

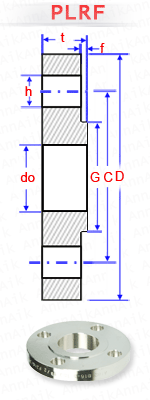

  D C h   do t G f
10 90 60 14 4 18 14 40 2
15 95 65 14 4 22 14 45 2
20 105 75 14 4 27 16 58 2
25 115 85 14 4 34.5 16 68 2
32 140 100 18 4 43.5 18 78 3
40 150 110 18 4 49.5 18 88 3
50 165 125 18 4 61.5 20 102 3
65 185 145 18 8 77.5 22 122 3
80 200 160 18 8 90.5 24 138 3
100 235 190 22 8 116.0 26 162 3
125 270 220 26 8 141.5 28 188 3
150 300 250 26 8 170.5 30 218 3
200 375 320 30 12 221.5 36 285 3
250 450 385 33 12 276.5 42 345 4
300 515 450 33 16 327.5 48 410 4
350 580 510 36 16 359.5 54 465 4
400 660 585 39 16 411.0 60 535 4
450 685 610 39 20 462.0 66 560 4
500 755 670 42 20 513.5 72 615 5
600 890 795 48 20 616.5 84 735 5

* for code 101 flanges only
