1000 WOG 3PC Full Port Ball Valve
| EATURES | Investment Casting for Body and End Cap Blow-Out Proof Stem Various Thread Standards Available Full Port |
| STANDARDS | |
| Design | ASME B16.34, API 608 |
| Pipe Thread | ASME B1.20.1, BS21 DIN 2999/259, BSP |
| Butt Weld | ASME B16.25 |
| Socket Weld | ASME B16.11 |
| Flange End | ASME B16.5, DIN 2542~2545, JIS B2238 |
| Inspection Testing | API 598 |

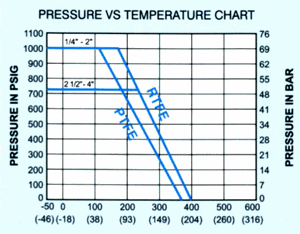

| SPECIFICATIONS | |
| Working Pressure | 1000 psi at 100ºF(38ºC) |
| Temperature Range | -50ºF to 350ºF (-46ºF to 177ºC) |

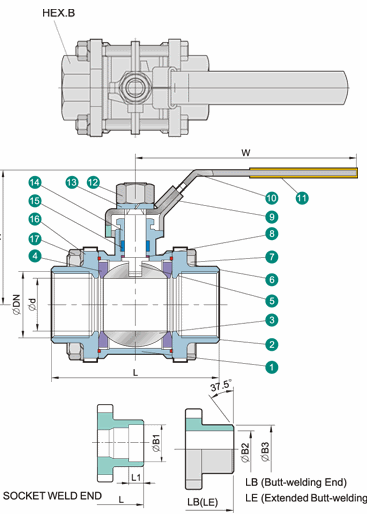

| MATERIAL LIST | ||
|---|---|---|
| NO | PART NAME | SPECIFICATION |
| 1 | Body | A351-CF8M |
| 2 | Cap | A351-CF8M |
| 3 | Ball | A351-CF8m |
| 4 | Ball Seat | PTFE |
| 5 | Stem | A276 – 316 |
| 6 | Body Gasket | PTFE |
| 7 | Bolt | SUS 304 |
| 8 | Thrust Washer | PTFE |
| 9 | Lock Device | SUS 304 |
| 10 | Handle | SUS 304 |
| 11 | Handle Sleeve | Vinyl Plastic |
| 12 | Stem Nut | SUS 304 |
| 13 | Stem Washer | SUS 304 |
| 14 | Gland Nut | SUS 304 |
| 15 | Stem Packing | PTFE |
| 16 | Bolt Washer | SUS 304 |
| 17 | Bolt Nut | SUS 304 |
| DIMENSIONS (MM) | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SIZE | ØD | L | LE | LF | H | W | ØD | ØC | ØR | T | F | N | ØM | ØM1 | ØM2 | ØM3 | Ø DN |
| 1/4" | 10.6 | 61.2 | 225.0 | - | 57.5 | 100.0 | - | - | - | - | - | - | - | 14.1 | 12.0 | 18.0 | NPT BSP PT DIN etc., |
| 3/8" | 12.0 | 65.2 | 225.0 | - | 57.5 | 100.0 | - | - | - | - | - | - | - | 18.0 | 14.0 | 18.0 | |
| 1/2" | 15.0 | 69.4 | 225.0 | 130.0 | 57.5 | 100.0 | 95.0 | 65.0 | 45.0 | 16.0 | 2.0 | 4.0 | 14.0 | 22.0 | 16.0 | 22.0 | |
| 3/4" | 20.0 | 83.0 | 225.0 | 150.0 | 63.0 | 129.0 | 105.0 | 75.0 | 58.0 | 18.0 | 2.0 | 4.0 | 14.0 | 27.3 | 21.0 | 27.0 | |
| 1" | 25.0 | 91.0 | 245.0 | 160.0 | 75.5 | 156.0 | 115.0 | 85.0 | 68.0 | 18.0 | 2.0 | 4.0 | 14.0 | 34.0 | 26.0 | 34.0 | |
| 1-1/4" | 32.0 | 107.0 | 255.0 | 180.0 | 81.0 | 156.0 | 140.0 | 100.0 | 78.0 | 18.0 | 2.0 | 4.0 | 18.0 | 42.8 | 35.0 | 44.0 | |
| 1-1/2" | 38.0 | 123.0 | 260.0 | 200.0 | 94.0 | 182.5 | 150.0 | 110.0 | 88.0 | 18.0 | 3.0 | 4.0 | 18.0 | 48.9 | 41.0 | 50.0 | |
| 2 | 50.0 | 138.0 | 275.0 | 230.0 | 104.5 | 182.5 | 165.0 | 125.0 | 102.0 | 20.0 | 3.0 | 4.0 | 18.0 | 61.4 | 53.0 | 61.0 | |
| 2-1/2" | 63.5 | 180.5 | 334.0 | 290.0 | 131.0 | 250.0 | 185.0 | 145.0 | 122.0 | 22.0 | 3.0 | 8.0 | 18.0 | 74.0 | 62.7 | 76.0 | |
| 3" | 76.0 | 192.6 | 354.0 | 310.0 | 139.0 | 250.0 | 200.0 | 160.0 | 138.0 | 24.0 | 3.0 | 8.0 | 18.0 | 90.0 | 78.0 | 92.0 | |
| 4" | 100.0 | 224.0 | 365.0 | 350.0 | 173.0 | 280.0 | 235.0 | 190.0 | 162.0 | 24.0 | 3.0 | 8.0 | 22.0 | 115.7 | 102.8 | 115.0 | |
