1000 WOG 3PC Full Port Ball Valve

PRODUCTS & SERVICES > STEEL > VALVES > High Performance Ball Valves > 1000 WOG 3PC Full Port Ball Valve

FEATURES Built-in ISO 5211 Direct Mounting Pad and Square Stem for Eacy Automation
Anti-Static Devices for Ball-Stem-Body
Blow-out Proof Stem
Pre-Load 2 Belleville Washers to Self-adjust Packing
TA-LUFT Design Approved
STANDARDS
DESIGN ASME B16.34, API 608
WALL THICKNESS EN 12516-3
PIPE THREAD ASME B1.20.1, BS21 DIN 2999/259, ISO 228/1, JIS B 0203, ISO 7/1
BUTT WELD ASME B16.25 (øB2 Sch 40) øB2 Available in Sch 10, 20
SOCKET WELD ASME B16.11
FLANGE END ASME B16.5 CLASS 150/300, EN 1092-1 PN10-40, JIS B2238 10K/20K
INSPECTION TESTING API 598, EN12266
SPECIFICATIONS
WORKING PRESSURE 1000 psi at 100ºF(38ºC)
TEMPERATURE RANGE -50ºF to 350ºF (-46ºF to 177ºC)



MATERIAL LIST
NO PART NAME SPECIFICATION
1 Body A351-CF8M
2 Cap A351-CF8M
3 Ball A351-CF8m
4 Ball Seat PTFE
5 Stem A276 – 316
6 Body Gasket PTFE
7 Bolt SUS 304
8 Thrust Washer PTFE
9 Lock Device SUS 304
10 Handle SUS 304
11 Handle Sleeve Vinyl Plastic
12 Stem Nut SUS 304
13 Stem Washer SUS 304
14 Gland Nut SUS 304
15 Stem Packing PTFE
16 Bolt Washer SUS 304
17 Bolt Nut SUS 304

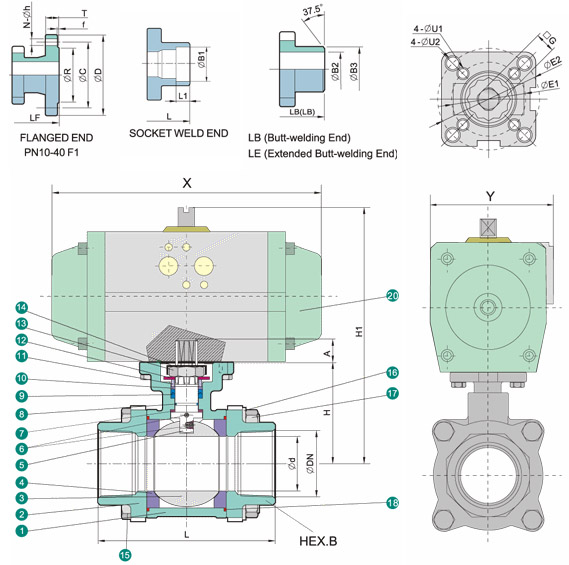

DIMENSIONS (mm)
Size ø d L LB LE LF H H1 ø E1 ø E2 G ø U1 ø U2 A ø D ø C ø R T F N øh L1 øB1 øB2 øB3 X Y P-Actuator E-Actuator Pressure
1/4″ 10.6 75 70 225 - 42 - 36 42 9 6 6 9 - - - - - - - 10 14.2 10.6 18 144 72 KP50 KQ006 80PSI
3/8″ 12.7 75 70 225 - 42 - 36 42 9 6 6 9 - - - - - - - 10 17.8 12.7 18 144 72 KP50 KQ006 80PSI
1/2″ 15.0 75 75 225 130 42 169 36 42 9 6 6 9 95 65 45 16 2.0 4 14 10 21.8 15.8 22 144 72 KP50 KQ006 80PSI
3/4″ 20.0 80 90 225 150 48.5 177 36 50 9 6 7 9 105 75 58 18 2.0 4 14 13 27.3 20.9 28 144 72 KP50 KQ006 80PSI
1″ 25.0 90 100 245 160 58.5 200 42 50 11 6 7 11 115 85 68 18 2.0 4 14 13 34.0 26.7 34 164 84 KP63 KQ006 80PSI
1-1/4″ 32.0 110 110 255 180 63 215 42 70 11 6 9 11 140 100 78 18 2.0 4 18 16 42.8 35.1 43 164 84 KP63 KQ006 80PSI
1-1/2″ 38.0 120 125 260 200 71 234 50 70 14 7 9 14 150 110 88 18 3.0 4 18 16 48.9 40.9 50 208 96 KP75 KQ008 80PSI
2 50.0 140 150 275 230 78 241 50 70 14 7 9 14 165 125 102 20 3.0 4 18 17 61.4 52.5 61 208 96 KP75 KQ008 80PSI
2-1/2″ 63.5 185 190 334 290 100 291 70 102 17 9 11 17 185 145 122 22 3.0 8 18 17 74.0 62.7 76 248 108 KP88 KQ015 80PSI
3″ 76.0 205 220 354 310 109 313 70 102 17 9 11 17 200 160 138 24 3.0 8 18 17 90.0 78.0 92 268 123 KP100 KQ015 80PSI
4″ 100.00 240 270 365 350 140 400 - 102 22 - 11 22 235 190 162 24 3.0 8 22 20 115.4 102.4 115 345 151 KP100 KQ020 80PSI
