1000 WOG 2PC Full Port Ball Valve

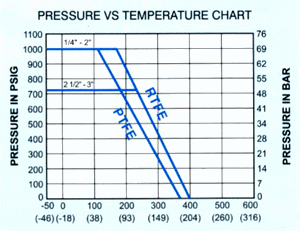

| FEATURES | Investment Casting for Body and End Cap Blow-Out Proof Stem Various Thread Standards Available Full Port |
| STANDARDS | |
| Design: | ASME B16.34, API 608 |
| Pipe Thread: | ASME B1.20.1, BS21 DIN 2999/259, BSP |
| Inspection Testing: | API 598 |
| SPECIFICATIONS | |
| Working Pressure: | 1000 psi at 100ºF(38ºC) |
| Temperature Range: | -50ºF to 350ºF (-46ºF to 177ºC) |

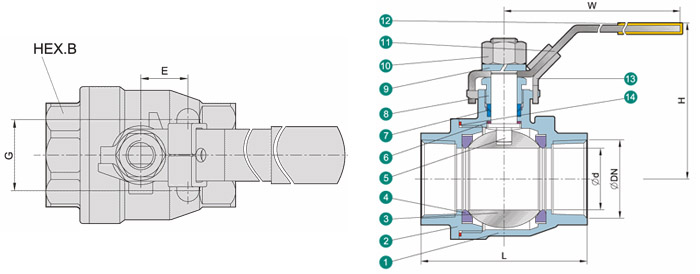

| DIMENSIONS (MM) | |||||||
|---|---|---|---|---|---|---|---|
| SIZE | Ø D | L | H | W | E | G | Ø DN |
| 1/4" | 10.6 | 56.0 | 58.0 | 100.0 | 12.7 | 28.5 | NPT BSP PT DIN etc., |
| 3/8" | 12.0 | 56.0 | 58.0 | 100.0 | 12.7 | 28.5 | |
| 1/2" | 15.0 | 60.0 | 58.0 | 100.0 | 21.7 | 28.5 | |
| 3/4" | 20.0 | 72.4 | 64.0 | 129.0 | 22.0 | 34.8 | |
| 1" | 25.0 | 85.0 | 77.0 | 156.0 | 22.0 | 34.8 | |
| 1-1/4" | 32.0 | 94.0 | 83.0 | 156.0 | 23.6 | 38.1 | |
| 1-1/2" | 38.0 | 105.0 | 96.0 | 182.5 | 23.6 | 38.1 | |
| 2 | 50.0 | 125.0 | 102.0 | 182.5 | 23.6 | 38.1 | |
| 2-1/2" | 63.5 | 155.0 | 129.0 | 252.0 | 35.0 | 65.0 | |
| 3" | 76.0 | 173.0 | 138.5 | 252.0 | 35.0 | 65.0 | |
