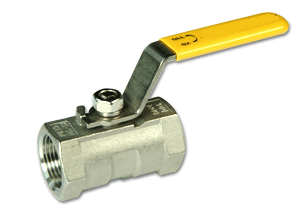

1000 WOG 1PC Reduced Port Ball Valve
| FEATURES | Investment Casting for Unibody Various Thread Standards Available Blow-Out Proof Stem Double Reduced Port Lock Device are Available Upon Request |
| STANDARDS | |
| Design: | ASME B16.34, API 608 |
| Pipe Thread: | ASME B1.20.1, BS21 DIN 2999/259, BSP |
| Inspection Testing: | API 598 |
| SPECIFICATIONS | |
| Working Pressure: | 1000 psi at 100ºF(38ºC) |
| Temperature Range: | -50ºF to 350ºF (-46ºF to 177ºC) |
| MATERIAL LIST | ||
|---|---|---|
| NO | PART NAME | SPECIFICATION |
| 1 | Body | A351-CF8M |
| 2 | End Plug | A351-CF8M |
| 3 | Ball Seat | PTFE |
| 4 | Ball | A351-CF8m |
| 5 | Body Gasket | PTFE |
| 6 | Thrust Washer | PTFE |
| 7 | Stem Packing | PTFE |
| 8 | Gland Nut | SUS 304 |
| 9 | Stem Washer | SUS 304 |
| 10 | Stem Nut | SUS 304 |
| 11 | Stem | A276-316 |
| 12 | Handle Sleeve | Vinyl Plastic |
| 13 | Handle | SUS 304 |
| 14 | Lock Device (Upon Request) | SUS 304 |

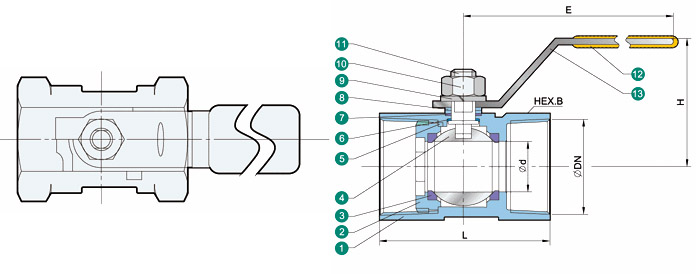

| DIMENSIONS (MM) | ||||||
|---|---|---|---|---|---|---|
| SIZE | Ø D | L | H | E | HEX.B | Ø DN |
| 1/4" | 5.0 | 40.0 | 34.0 | 70.0 | 17.0 | NPT BSP PT DIN etc., |
| 3/8" | 7.0 | 46.0 | 35.0 | 80.0 | 21.0 | |
| 1/2" | 9.1 | 58.0 | 44.0 | 92.0 | 25.0 | |
| 3/4" | 12.5 | 61.0 | 46.0 | 92.0 | 32.0 | |
| 1" | 16.0 | 73.5 | 51.0 | 115.0 | 38.0 | |
| 1-1/4" | 20.0 | 78.0 | 58.0 | 115.0 | 48.0 | |
| 1-1/2" | 25.0 | 85.0 | 66.0 | 127.0 | 53.0 | |
| 2 | 32.0 | 102.0 | 72.0 | 127.0 | 66.0 | |
