NOMINAL PIPE SIZE		OUTSIDE DIA.(MM)	DIA. OF BOLT CIRCLE (MM)	DIA. OF HOLES(MM)	NUMBER OF HOLES	DIA. OF BORE (MM)	THICKNESS MIN. (MM)	DIA. OF HUB AT SMALL END (MM)	DIA. OF HUB AT LARGE END (MM)	LENGTH THRU. HUB (MM)	CHAMFERING (MM)	RADIUS OF FILLET (MM)	APPROX. WEIGHT (KG.)

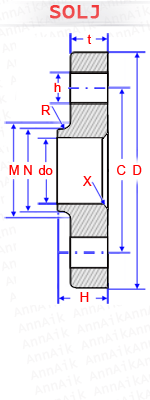

A		D	C	h		do	t	N	M	H	X	R
1/2"	15	95	70	15	4	23.4	12	27	30	16	3	4	0.56
3/4"	20	100	75	15	4	28.9	14	33	36	20	3	4	0.71
1"	25	125	90	19	4	35.6	14	41	44	20	3	4	1.11
1.1/4"	32	135	100	19	4	44.3	16	50	53	22	4	4	1.45
1.1/2"	40	140	105	19	4	50.4	16	56	60	24	4	4	1.53
2"	50	155	120	19	4	62.7	16	69	73	24	4	4	1.83
2.1/2"	65	175	140	19	4	78.7	18	86	91	27	5	4	2.53
3"	80	185	150	19	8	91.6	18	99	105	30	5	4	2.52
3.1/2"	90	195	160	19	8	104.1	18	-	-	-	5	-	2.66
4"	100	210	175	19	8	116.9	18	127	130	36	5	4	3.02
5"	125	250	210	23	8	143.0	20	154	161	40	6	4	4.60
6"	150	280	240	23	8	168.4	22	182	189	40	6	4	6.14
7"	175	305	265	23	12	-	22	-	-	-	-	-	-
8"	200	330	290	23	12	219.5	22	-	-	-	6	6	7.28
9"	225	350	310	23	12	-	22	-	-	-	-	6	-
10"	250	400	355	25	12	271.7	24	288	292	36	6	6	12.3
12"	300	445	400	25	16	322.8	24	340	346	38	9	6	13.2
14′	350	490	445	27	16	360.2	26	380	386	42	9	6	17.4
16"	400	560	510	27	16	411.2	28	436	442	44	9	6	24.8
18"	450	620	565	27	20	462.3	30	496	502	48	9	6	32.3
20"	500	675	620	33	20	514.4	30	548	554	48	9	6	36.4
22"	550	745	680	33	20	565.2	32	604	610	52	9	6	47.7
24"	600	795	730	33	24	616.0	32	656	662	52	9	6	50.8
