1-PC Ball Valve, Reduced Bore, 1000PSI
| FEATURE | |
|---|---|
| Working Pressure | 1000 PSI |
| Size | 1/4″~2″(DN8~DN50) |
| Reduced Bore | |
| Thread End | NPT, BSPT, BSPF, DIN 2999 |
| Blow-Out-Proof Stem | |
| Optional | Locking Handle |

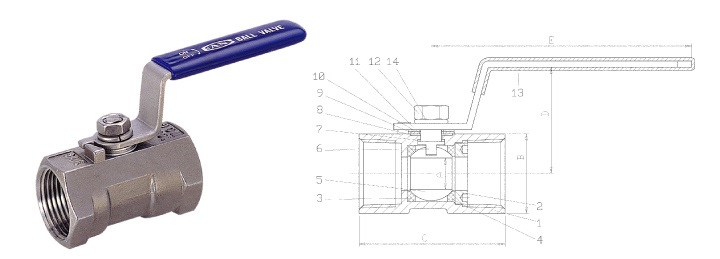

| ITEM | PARTS NAME | MATERIAL | |
|---|---|---|---|
| STAINLESS STEEL | CARBON STEEL | ||
| 1 | Body | A351-CF8M | A216-WCB |
| 2 | Seat Retainer | A351-CF8M | A216-WCB |
| 3&4 | Seat | PTFE+15%G.F. | PTFE+15%G.F. |
| 5 | Ball | A351-CF8M / SUS 316 | A351-CF8 / SUS 304 |
| 6 | Stem | SUS 316 | SUS 304 |
| 7 | Gasket | PTFE+15%G.F. | PTFE+15%G.F. |
| 8 | Thin Gasket | PTFE+15%G.F. | PTFE+15%G.F. |
| 9 | Flat Washer | 420J1 | 420J1 |
| 10 | Belleville Spring Washer | 420J1 | 420J1 |
| 11 | Handle | SUS 304 | SUS 304 |
| 12 | Prevent Loose Nut | SUS 304 | SUS 304 |
| 13 | Plastic Coating | VINYL | VINYL |
| 14 | Lever Spring Washer | SUS 304 | SUS 304 |
| DIMENSION | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| ITEM | A | B | C | D | E | ||||||
| Size | NPS | mm | inch | mm | inch | mm | inch | mm | inch | mm | inch |
| 1/4″ | DN8 | 5.0 | 0.197 | 17.1 | 0.673 | 38.7 | 1.524 | 27.2 | 1.071 | 58 | 2.283 |
| 3/8″ | DN10 | 7.0 | 0.276 | 20.7 | 0.815 | 44.2 | 1.740 | 29.0 | 1.142 | 70 | 2.756 |
| 1/2″ | DN15 | 9.0 | 0.354 | 24.8 | 0.976 | 55.6 | 2.189 | 36.5 | 1.437 | 85 | 3.346 |
| 3/4″ | DN20 | 12.5 | 0.492 | 31.4 | 1.236 | 62.1 | 2.445 | 39.8 | 1.567 | 85 | 3.346 |
| 1″ | DN35 | 15.0 | 0.591 | 38.2 | 1.504 | 68.9 | 2.713 | 49.1 | 1.933 | 100 | 3.937 |
| 1-1/4″ | DN32 | 20.0 | 0.787 | 47.0 | 1.850 | 78.2 | 3.079 | 53.5 | 2.106 | 100 | 3.937 |
| 1-1/2″ | DN40 | 24.5 | 0.965 | 53.0 | 2.087 | 86.0 | 3.386 | 61.5 | 2.421 | 125 | 4.921 |
| 2″ | DN50 | 32.0 | 1.260 | 65.2 | 2.567 | 102.7 | 4.043 | 67.6 | 2.661 | 125 | 4.921 |
